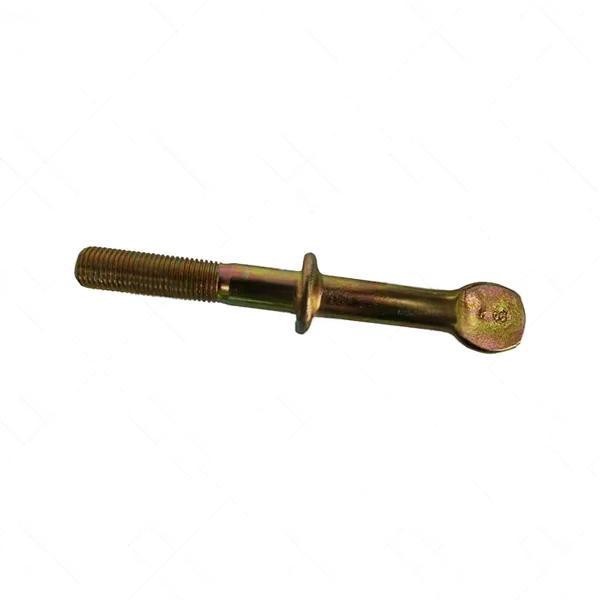

Railway Anchor Bolt

Thauj tog rau nkoj bolts raug ntsia rau hauv ua ntej -drilled qhov nyob rau hauv lub sleepers. Los ntawm cov xov siab - lub zog muaj zog, lub caij nplooj ntoos hlav ntxhua khaub ncaws, lub tshuab ntxhua khaub ncaws, thiab cov txiv ntoo xauv, lawv kaw lub tsheb ciav hlau mus rau tus neeg pw tsaug zog, uas muaj lub zog ntawm 100–150 kN longitudinal shear force tsim thaum ib qho - qag 25–30 t freight tsheb nres. Tsis zoo li cov bolts tig tawm, lawv lub neej tsim yuav tsum yog 30 xyoo txij nkawm-dawb, cuam tshuam ncaj qha rau kev taug kev du thiab kev nyab xeeb ntawm tsheb ciav hlau.







Performance Parameter	Common Carbon Steel Khoom	Siab -Ntaus alloy steel khoom
Tensile zog	Txog 400MPa - 600MPa	800MPa - 1200MPa lossis siab dua
Yield zog	200MPa - 300MPa	400MPa - 600MPa
Shear Strength	Kwv yees li 0.5 - 0.6 npaug ntawm lub zog tensile	Kwv yees li 0.5 - 0.6 npaug ntawm lub zog tensile
Kev qaug zog	Lub zog Performance index uas lub ntsia liaj qhov rooj tuaj yeem tiv taus qhov siab tshaj plaws yam tsis muaj kev qaug zog tsis ua haujlwm nyob rau hauv kev hloov pauv. Tus nqi tshwj xeeb txawv nyob ntawm cov khoom siv, txheej txheem, thiab kev thauj khoom	Lub zog Performance index uas lub ntsia liaj qhov rooj tuaj yeem tiv taus qhov siab tshaj plaws yam tsis muaj kev qaug zog tsis ua haujlwm nyob rau hauv kev hloov pauv. Tus nqi tshwj xeeb txawv nyob ntawm cov khoom siv, txheej txheem, thiab kev thauj khoom





Double anti-loosening protection: The head has 30° anti-loosening teeth on the bottom surface, which, when used with a nylon insert lock nut, provides an anti-loosening torque of >600 N·m.

Kev them nyiaj eccentricity: T- lub taub hau tsim tso cai rau 1:20 taper kom haum rau qhov sib txawv ntawm lub kaum sab xis ntawm lub qhov rooj pw tsaug zog.

Kev cuam tshuam kev thauj mus los: Kev cuam tshuam ntawm ntu tus pas nrig thiab lub qhov ua vaj tse yog 0.08-0.12 hli, uas, thaum siv tshuaj anchoring nplaum los yog lub tes tsho nthuav dav, muab kev rub tawm - tawm ntawm 80 kN.

Kev txheeb xyuas thiab traceability: Lub taub hau yog laser -engraved nrog cov chaw tsim khoom lub cim + batch tooj + xyoo, txhawb nqa tag nrho lub neej traceability.

Kev txhim kho kev tiv thaiv corrosion: zinc- txhuas- magnesium txheej muaj tus kheej - kho, ncua ntsev tsuag lub neej ntawm 25 xyoo mus rau 35 xyoo.

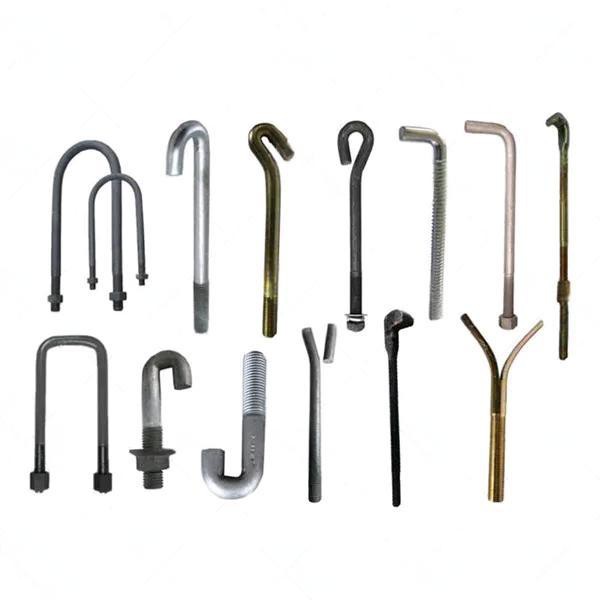

1. L-Puab Anchoring Bolt

Paub meej	Kev piav qhia
Siv	Haum rau kev txhim kho cov neeg pw tsaug zog thiab cov txaj hauv kev, feem ntau pom nyob rau hauv cov kev tsheb ciav hlau zoo tib yam lossis cov chaw tig tawm
Khoom siv	Q235 carbon steel / 45 # steel / stainless hlau 304
Txoj kab uas hla	M16 – M30
Ntev Ntau	200mm-500mm
Khoov lub kaum sab xis	90℃(L-zoo li tus)
Tensile zog	Ntau dua lossis sib npaug li 500MPa
Kev kho saum npoo	Kub - dip galvanizing / Dacromet txheej



2. J - Zoo li Anchoring Bolt

Paub meej	Kev piav qhia
Siv	Feem ntau yog siv rau kev txhim kho hauv cov ntu nkhaus lossis cov terrains nyuaj, nrog lub zog sab nraud
Khoom siv	40Cr alloy steel / stainless hlau 316
Txoj kab uas hla	M20 – M36
Ntev Ntau	300mm-600mm
Khoov Arc	Semicircular (J - zoo li tus nuv taub hau)
Tensile zog	Ntau dua lossis sib npaug li 600MPa
Kev kho saum npoo	Zinc infiltration / Epoxy resin txau



3. U-Shaped Anchoring Bolt

Paub meej	Kev piav qhia
Siv	Siv rau ob -txoj kev kaw ntawm steel rails thiab pw tsaug zog, feem ntau pom nyob rau hauv siab - kev tsheb ciav hlau ceev los yog hnyav-haul railways
Khoom siv	35CrMo alloy hlau
Txoj kab uas hla	M24 – M42
Qhib dav	50mm-120mm
Shear Strength	Ntau tshaj lossis sib npaug li 700 MPa
Kev kho saum npoo	Kub - txau zinc / Phosphating kev kho mob



4. T-Puab Anchoring Bolt

Paub meej	Kev piav qhia
Siv	Haum rau embedded fixation nyob rau hauv ballasted lem los yog ballastless lem
Khoom siv	Q345B tsis tshua muaj hlau alloy
Txoj kab uas hla	M18 – M32
Lub taub hau loj	T - zoo li lub taub hau dav 40mm - 80mm
Vibration Resistance Performance	Ua raws li tus qauv TB/T 2344
Kev kho saum npoo	Electro-galvanizing / Fluorocarbon txheej

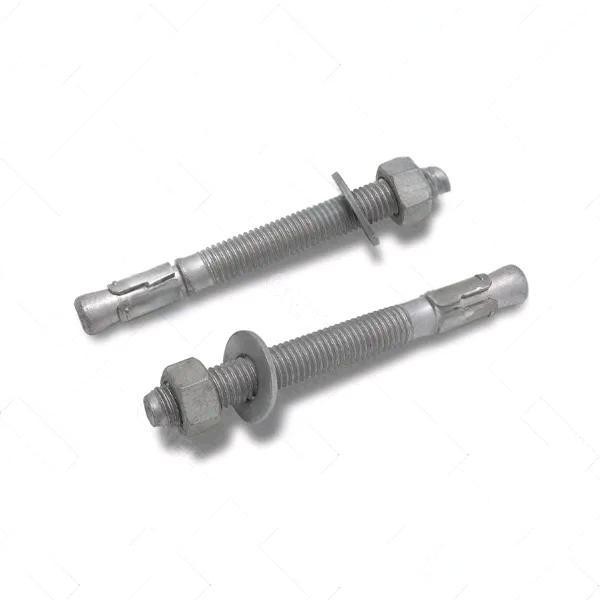

5. Ncaj - Qws Anchoring Bolt (Expansion Type)

Paub meej	Kev piav qhia
Siv	Siv rau kev nrawm nrawm ntawm cov pob zeb pw tsaug zog lossis choj lem
Khoom siv	20MnTiB alloy steel
Txoj kab uas hla	M12–M24
Ntev Ntau	150mm-400mm
Expansion Tsho Khoom	Nylon / Stainless hlau
Installation Torque	100 N·m – 300 N·m



Railway Anchor Bolts yog los tiv thaiv - creep anchors rau kev tsheb ciav hlau. Lawv cuam tshuam haum, tiv thaiv -loosing hniav, thiab siab shear resistance tsim kom ntseeg tau tias txoj kev tsheb nqaj hlau tseem ruaj khov nyob rau hauv qhov chaw txawm tias tom qab ntau lab ntawm kev cuam tshuam ntawm braking. Xaiv cov ntsia hlau tsis raug tuaj yeem ua rau geometric deformation ntawm txoj kev tsheb ciav hlau; xaiv cov khoom tsim nyog tuaj yeem ua kom paub tseeb 30 xyoo ntawm kev saib xyuas- ua haujlwm dawb, lav kev nyab xeeb ntawm kev ua haujlwm ntau -billion dollar railway network.



Cim npe nrov: railway thauj tog rau nkoj bolt, Tuam Tshoj railway thauj tog rau nkoj bolt manufacturers, lwm tus neeg, Hoobkas
